DCX3 DE double sealing shut-off valve
The double sealing valve DCX3 DE can detect potential leaks between two isolated zones, thanks to an airlock system. It is an alternative to independent plug valves with a leakage chamber.
The benefits
The product features
From DN 51 to DN 104
- SMS, DIN or US version.
Mass-machined spherical body

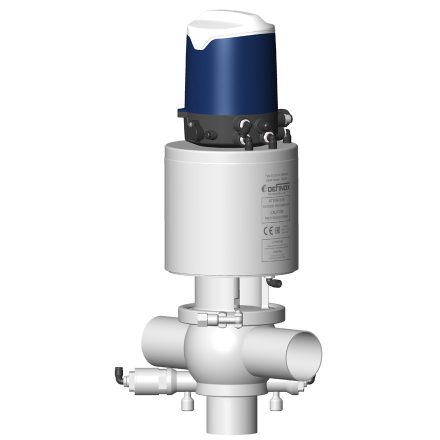

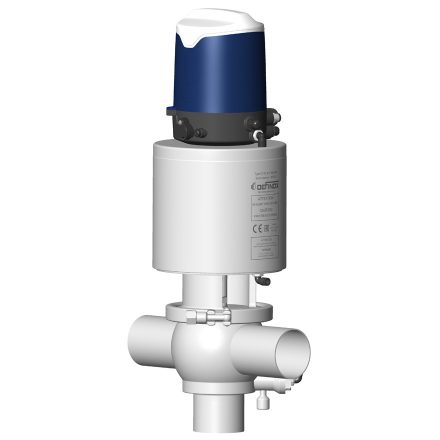

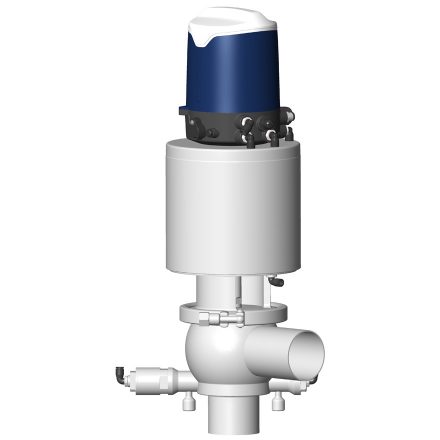

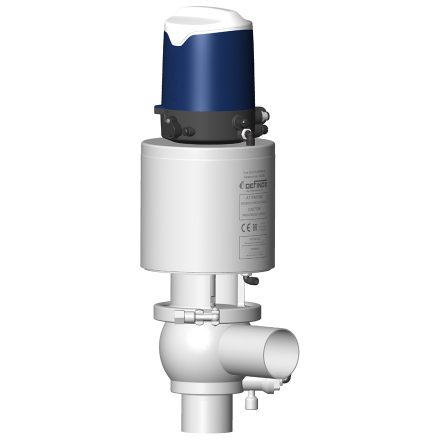

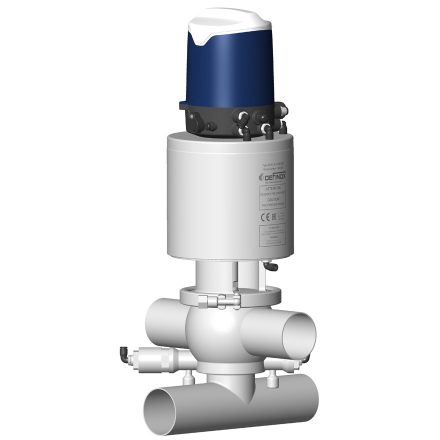

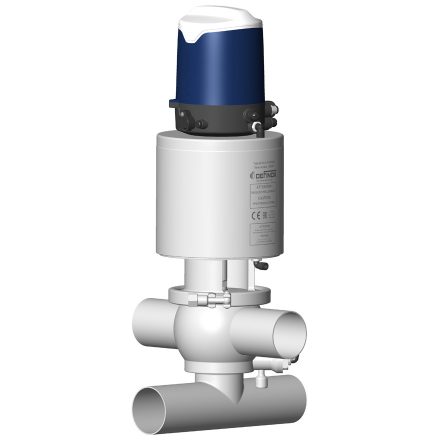

- Configurations available: L, T or cross body.
One-piece mass-machined plug
- Hygienic sturdy design avoiding risk of failure of unscrewing.
PFA floating seal
- Ensuring the cleaning all over the faces of the seal and the seal seat
- Resistant against high temperature.
Normally Open NO
- Allowing detection of possible leak.
Cleaning micro-valve, optional
- Ensuring the cleaning of the leak chamber and indicator, valve closed.
Dismantable actuator
- Easily transformed Normally Open NO, Normally Closed NC, Double Acting DA.
Leakage chamber
- Avoiding risk of mixing between lower and upper lines
- Allowing the release of overpressure under the plug.
Documentary Resources
CAD 3D 2D ePortal
Go to our symbols Library 2D or 3D, available in all CAD formats 2D, 3D, native or neutral. Select and download the symbols from our online configurator.
