If you are looking for documentation, go to our Document Library

Filter by valve type

Shut-off and divert aseptic valve

Aseptic diaphragm valve

Shut-off and divert aseptic valve

Aseptic shut-off valve DCX3 steam bearing L body with Sorio control top

DCX3 aseptic bearing shut-off valve

The aseptic bearing shut-off valve is fitted with a fluid (cleaning / rinsing) or vapor circulation bearing. This configuration allows for sterilizing the valve components in contact with the exterior before encountering the fluid process when handling the valve.

See the product

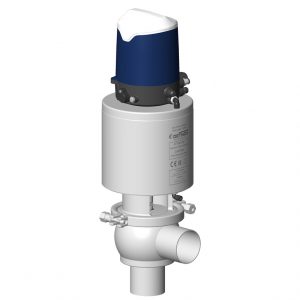

Diaphragm shut-off valve DCX3 single sealing L body with Sorio control top

DCX3 diaphragm shut-off valve

For aseptic applications, the DCX3 valve can be equipped with a diaphragm PTFE ensuring a physical barrier between the interior of the valve and the external environment.

See the product

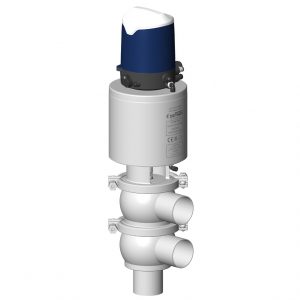

Diaphragm divert valve DCX4 single sealing LL body with Sorio control top

DCX4 diaphragm divert valve

For aseptic applications, the DCX4 valve can be equipped with a diaphragm PTFE ensuring a physical barrier between the interior of the valve and the external environment.

See the product

Aseptic diaphragm valve

Manual diaphragm valve DMX

DMX DMAX diaphragm valve

The DMX DMAX diaphragm valve allows for retention free flow and a constant flow diameter. Its design, integrating a physical barrier between the interior of the valve and the external environment, makes for a valve particularly adapted to the pharmaceutical industry.

See the product
