DCX3 single sealing shut-off valve
The single seal valve DCX3, designed to respond efficiently to the demands of the market in both cleanability and functionality, comes equipped with a PFA floating seal.
Shut-off valve Reverse DCX3 single sealing with Sorio con
The benefits
The product features
From DN 25 to DN 150
- SMS, DIN or US versions
- Certain variants up to DN 250.
One-piece plug with PFA floating seal
- Sturdy design, avoiding any risk of breakage or unscrewing
- PEEK plug for steam and chemical application, as a variant.
Mass-machined spherical body
- Configurations available: L, T, cross or half-cross body.
Use on numerous applications
- Various sealing solutions: PFA, elastomer, metal metal
- Many end connections: SMS, DIN, Clamp
Elastomer sealing
- EPDM or FKM
- Adapted to abrasive fluid process or fluid with particles.
Optimal flow management, with DCX3 Reverse version
- Extended body configuration, with L/L body
- Simple integration to the existing process lines.
- Available in elastomer version, EPDM or FKM seal.
Manual version
Dismantable actuator
- Easily transformed Normally Open NO, Normally Closed, Double Acting DA.
Long stroke version
- Maximum plug clearance
- Adapted to fibrous or fragile fluid.
Documentary Resources
CAD 3D 2D ePortal
Go to our symbols Library 2D or 3D, available in all CAD formats 2D, 3D, native or neutral. Select and download the symbols from our online configurator.
Related products
Manifold or valve fitting assembly
Designed with care and built to last, the manifolds manufactured by Definox comply with the most stringent demands on sanitary processes.
Taking care to satisfy the ergonomic and safety concerns of industrial companies, Definox integrates, throughout their range of valves, devices that enable easy installation and accessibility to the valves. Issues concerning geometry, size and intended function, including the most complex, are all fully considered during the designing and manufacturing of these assemblies.
Sorio control top
The Sorio control top is available in a digital version, AS-i and IO-Link. Easy to use and put in place, it adapts to every type of valve.
It has innovative diagnostic and adjustment functions. The IO-Link version allows for predictive maintenance.
VEOX double independent plugs mixproof valve
With no product loss on opening, the VEOX double independent plugs mixproof valve, integrates a physical break between 2 circuits. This technology allows for the visualization of possible leaks and the secure flow of 2 different fluids with no cross contamination. The plug lifting ensures complete cleaning without opening the valve.

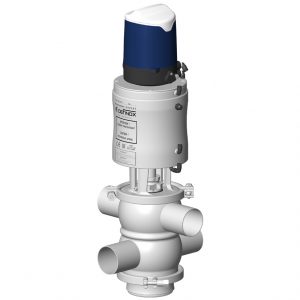

VDCI MC mixproof valve double independent plugs
