If you are looking for documentation, go to our Document Library

Filter by valve type

Tank bottom shut off valve

DCX3 FC tank bottom single sealing shut-off valve

Fitted with a mass-flange, the DCX3 tank bottom valve is used for isolating the tank from the process during emptying or filling of the tanks.

See the product

Tank bottom shut-off valve DCX3 FC for powder application with Sorio control top

Tank bottom shut-off valve for powder application

In order to facilitate filling powder into tanks, Definox offers a variant of the single seal tank bottom shutoff valve. Powder is introduced into the depressurized tank by suction.

See the product

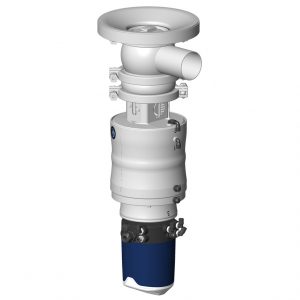

Tank bottom mixproof valve VEOX FC L body with Sorio control top

VEOX FC tank bottom double independent plugs mixproof valve

The double independent plugs tank bottom mixproof valve isolates the tank from the flow circuit. Visualization of the leak is assured by a fixed leak outlet. It integrates a physical cutoff between the 2 circuits and authorizes the crossing of two different fluids.

See the product
